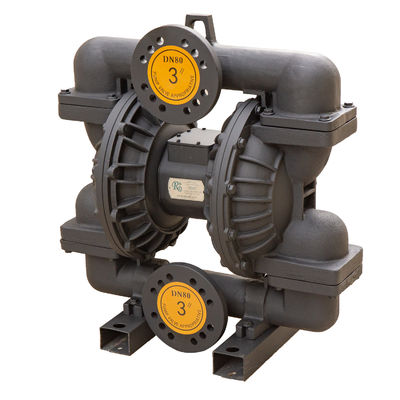

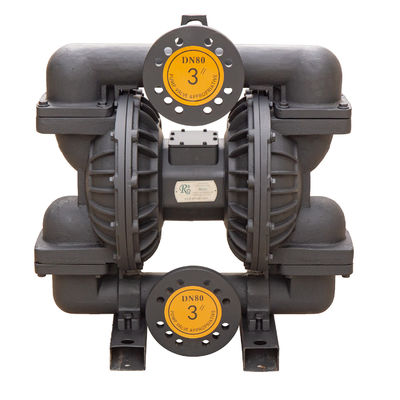

| 材料: | 延性鉄 | 重さ: | 体重は180kg |
|---|---|---|---|
| 最大圧力: | 120psi（0.84mpa、8.4bar） | マックスフロー: | 270gpm（1022lpm） |
| 最大作業圧力: | 120 psi（0.84mpa、8.4bar） | 最大流量: | 270gpm（1022L/m） |
| 最大回転速度: | 135cpm | 最大吸着高さ: | 5m |
| 最大 許容 さ れ た 穀物: | 0.37インチ。 （9.4mm） | 最高の空気消費: | 180scfm（90l/s） |
| エアインレットサイズ: | 3/4インチ | 空気出口 サイズ: | 3/4 inに |
| 流体の入口サイズ: | 3 インチ | 流体アウトレットサイズ: | 3 インチ |
| ポンプ・ボディ: | 延性鉄 | ||
| ハイライト: | 270 gpm Pneumatic Diaphragm Pump,1 Year Warranty Diaphragm Pump,180 kgs AODD Pump |
||
| Specification | Value |
|---|---|
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 270gpm (1022L/M) |
| Max Reciprocating Speed | 135cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37in. (9.4mm) |
| Max Air Consumption | 180scfm (90L/S) |
| Air Inlet Size | 3/4in |
| Air Outlet Size | 3/4in |
| Fluid Inlet Size | 3in |
| Fluid Outlet Size | 3in |
| Weight | Ductile Iron pump: 180KGS |
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
Our capabilities include design, innovation, precision production, and collaboration with Shanghai universities. Our main products are diaphragm pumps and control valves, including:
Our products have been granted more than 40 patents, including 10 invention patents. We participated in setting technical specifications for pneumatic diaphragm pumps in the petrochemical industry (National Standard No.: SH/T 3191-2017). We hold necessary certificates including TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS.
We serve industries including chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical. We have established long-term relationships with enterprises such as BASF, Bayer, and SAMSUNG, and export to over 70 countries.
Available Materials: Our engineers select the most suitable material for your working conditions:
Available Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection Types:
