| 最大作業圧力: | 120 psi（0.84mpa、8.4bar） | 最大流量: | 270gpm（1022L/m） |
|---|---|---|---|
| 最大回転速度: | 135cpm | 最大吸着高さ: | 5m |
| 最大 許容 さ れ た 穀物: | 0.37インチ。 （9.4mm） | 最高の空気消費: | 180scfm（90l/s） |
| エアインレットサイズ: | 3/4インチ | 空気出口 サイズ: | 1 inに |
| 流体の入口サイズ: | 3 インチ | 流体アウトレットサイズ: | 3 インチ |
| ポンプ重量: | 79kg | 適用される温度: | 5~80°C |
| 接続タイプ: | フランジ接続 | シーリング材料: | PTFE |
| ポンプの体材: | pp | ||
| ハイライト: | 5-80°C Diaphragm Pump,270gpm Max Flow Pneumatic Diaphragm Pump,Hytrel Diaphragm Air Operated Diaphragm Pump |
||

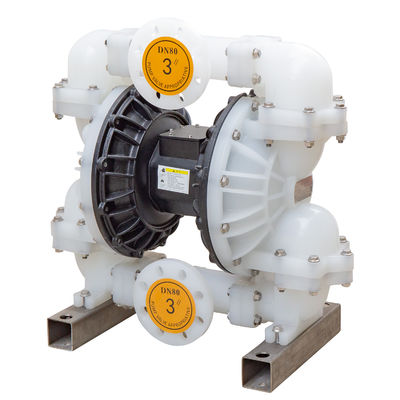

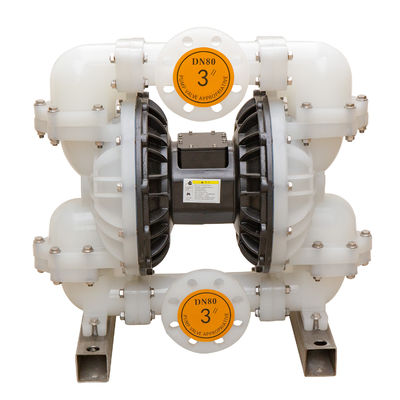

High-performance diaphragm pump designed for wastewater and drinking water treatment in machining applications.
| Specification | Value |
|---|---|
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 270gpm (1022L/M) |
| Max Reciprocating Speed | 135cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37in. (9.4mm) |
| Max Air Consumption | 180scfm (90L/S) |
| Air Inlet Size | 3/4in |
| Air Outlet Size | 1in |
| Fluid Inlet Size | 3in |
| Fluid Outlet Size | 3in |
| Weight | PP pump: 79KGS |
Headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Recognized as a High-Tech Enterprise and Credit Company for consecutive years.
Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N
Available sizes: 1/4" to 3"
Connection types: Threaded (1/4" to 1-1/2" plastic pumps, all metal pumps) or Flanged (1/2" to 3" plastic pumps)
1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
D/P, T/T, Western Union - please confirm with us for exact order.
Depends on quantity. Generally 1-7 working days.
Cartons with foam inside & wooden case & pallet.
By international express or sea.
15 years warranty for air motor, 5 years for pump body.
Yes, we can produce according to custom requirements.
