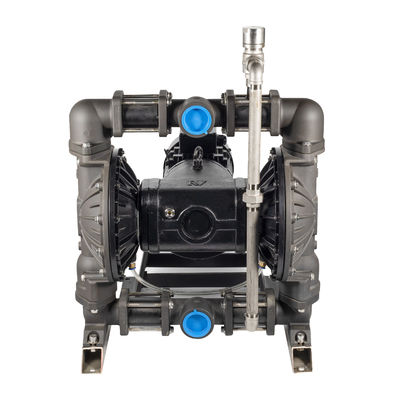

| 最大アウトレット圧力: | 0.6mpa、6bar | 最大流量: | 10.5M3/h |
|---|---|---|---|
| 最高の吸込揚程: | 3m | モーター出力: | 3.0kw（標準）、4.0kw（オプション） |
| モーター速度: | 1450r/min | 流体の入口サイズ: | 1 インチねじ切りまたはフランジ |
| 流体アウトレットサイズ: | 1 インチねじ切りまたはフランジ | 重さ: | ステンレス鋼：122kg、アルミニウム：77kg、炭素鋼：115kg |
| モータータイプ: | 爆発防止 | 電源: | 電気 |
| ポンプ構造: | 弁管ポンプ | ポンプ材料: | アルミニウム |
| 関数: | 輸送の液体 | 入口/出口オプション: | 3"への1/4" |
| 接続タイプ: | 通されるまたはフランジ | ||
| ハイライト: | 10.5m³/h Flow Rate Electric Diaphragm Pump,1 Year Warranty Diaphragm Pump,High Flow Rate Pump |
||
| Parameter | Value |
|---|---|
| Max Outlet Pressure | 0.6Mpa, 6bar |
| Max Flow Rate | 10.5m³/h |
| Max Suction Lift | 3m |
| Motor Power | 3.0KW standard (4.0KW available as option) |
| Motor Speed | 1450r/min |
| Fluid Inlet Size | 1 inch Threaded or Flange |
| Fluid Outlet Size | 1 inch Threaded or Flange |
| Weight | Stainless steel: 122 KGS Aluminum: 77 KGS Carbon steel: 115 KGS |
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
We specialize in diaphragm pumps and control valves, including:
Our products have been granted more than 40 patents, including 10 invention patents. We participated in setting national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017). Certifications include TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS.
We serve industries including chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical. Our clients include BASF, Bayer, and SAMSUNG, with exports to over 70 countries.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection types:
