| 最大圧力: | 0.6MPa | 最大流量: | 10.5m3/h |
|---|---|---|---|
| 吸気リフト: | 3m | モーター出力: | 3kw |
| モーター速度: | 1450r/min | ポンプの体材: | SST |
| 横隔膜材料: | PTFE | 電源: | 電気 |
| 構造: | 弁管ポンプ | 色: | 銀 |
| パッキング: | 木製のケース | インレット/アウトレットサイズ: | 3"への1/4" |
| 接続タイプ: | 糸付き,フレンジ付き | 濡れた部品材料: | PP、PVDF、酢酸、アルミニウム合金、延性鉄、ステンレス鋼 |
| ダイヤフラムのオプション: | Teflon、Santoprene、Viton、Hytre、Buna-n | ||

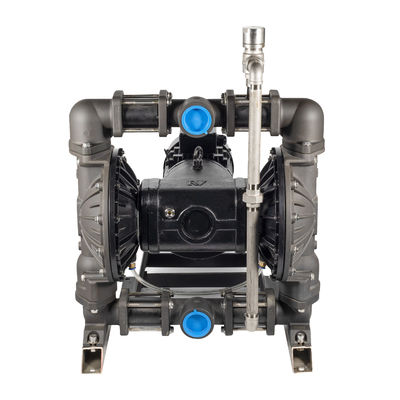

| ハイライト: | 0.6Mpa Max Pressure Electric Diaphragm Pump,3kW Motor Power AODD Pump,10.5m3/h Flow Rate Double Diaphragm Pump |
||
| Parameter | Value |
|---|---|
| Max Working Pressure | 0.6Mpa |
| Max Flow Rate | 10.5m³/h |
| Suction Lift | 3m |
| Motor Power | 3kW (standard), 4kW (optional) |
| Motor Speed | 1450r/min |
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China.
Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years. We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.
Our pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and other certifications.
We mainly provide services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and pharmaceutical industry.
We have established long term business relationships with famous enterprises such as BASF, Bayer, SAMSUNG, etc. Our RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
Our engineers will select the most suitable and economical material according to your specific working conditions:
Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection types:
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
A: D/P, T/T, Western Union, please confirm with us with exact order.
A: Depends on the quantity. Generally speaking, 1-7 working days.
A: Cartons with foam inside & wooden case & Pallet.
A: By International express or Sea.
A: 15 years warranty for air motor, 5 years for pump body.
A: Of course yes. We could produce product according to custom need.
