1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment

1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment

大画像 :  1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment

商品の詳細: お支払配送条件:
最小注文数量: 2セット
価格: $1,238/sets >=2 sets
連絡先

1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment

説明
アプリケーション: 他、自動車産業、生物燃料の企業、商業建物、新興社会水解決、地区エネルギー、飲料水の処置、実家、食品工業、HVAC OEM、産業ボイラー、産業実用性、潅漑そしてAg プレッシャー: 低圧
保証: 1年 モデル番号: RVS-74311-T
brand name: RV 原産地: 中国上海
カスタマイズされたサポート: OEM、ODM 電源: 空気圧
構造: 弁管ポンプ 材料: 304 ステンレス鋼
名前: 弁管ポンプ 色: 銀
重さ: 41kg ボール: PTFE
ブランド: RV パッキング: 木製ケース
最大圧力: 120psi（0.84mpa、8.4bar） ポンプ・ボディ: ステンレス鋼
マックスフロー: 90gpm（340pm）
ハイライト:

1-1/2" PTFE Ball Diaphragm Pump

,

90gpm Max Flow Stainless Steel Pump

,

Drinking Water Treatment Pneumatic Pump

Specification
Max Working Pressure
120 psi (0.84Mpa , 8.4bar)
Max Flow Rate
90gpm(3400pm)
Max Reciprocating Speed
200cpm
Max Suction Height (Dry Sucking)
5m
Max Permitted Grain
0.2in. (5mm)
Max Air Consumption
80scfm(40L/S)
Air Inlet Size
1/2 in
Air Outlet Size
3/4 in
Fluid Inlet Size
1-1/2in
Fluid Outlet Size
1-1/2in
Weight
Stainless steel pump: 41KGS
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 0
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 1
Our Advantages
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 2
Packing & Delivery
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 3
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 4
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 5
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 6
Company Profile
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 7

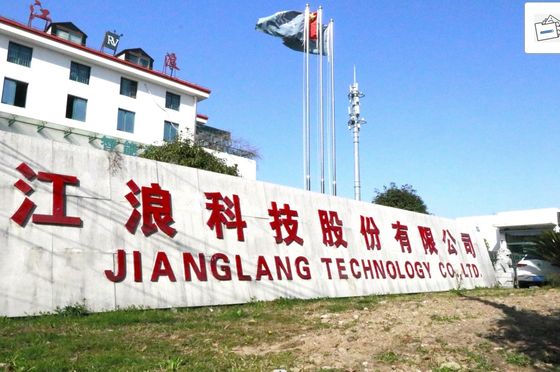

Company Introduction:
Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Shanghai Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".
Our Service
1-1/2" PTFE Ball Stainless Steel Diaphragm Pump with 90gpm Max Flow for Drinking Water Treatment 8
* All of the enquiry will be replied within 24 working hours

* Professional pump producer, with design team.

* All of the goods are packed with standard export wooden case (non-fumigation)

* Fast after-service
FAQ
1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .

4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet

5. Q: How are the products delivered to us?
A: By International express or Sea.

6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
